Simplex Security Software Solution
SSSS
Secure Data for National Security Facilities and Public Institutions!
SSSS transmits data one-way from the secure network to the non-secure network, while blocking all data transmission from the non-secure network to the secure network.
Cooling System
Efficient heat management through top and front vent holes and dual cooling fans
Redundant Power
Supports stable system operation with a 250W Redundant Power Supply
Rack Mount
Rack-mount brackets included as standard for convenient system installation
Physical / Logical One-Way Transmission
A TX-RX data transmission structure using optical cables establishes a physically one-way communication environment and blocks external intrusion.
1Gbps One-Way Data Transmission
A 1Gbps Simplex Optical LC Port enables stable data transmission from the secure network to the non-secure network.
Heterogeneous Communication Interface Support
Supports integration with various systems including OPC DA / OPC UA / SQL / ORACLE / MODBUS / Serial / VMS / AMS.
Encrypted Data Protection
Applies the NIS-validated SEED algorithm to protect the confidentiality and integrity of authorized data.
SSSS
Physical One-Way Transmission
A physical one-way device configured with TX-RX fundamentally blocks data flow from the non-secure network to the secure network.
Transmission Data Protection
The NIS-validated SEED algorithm securely protects data transmitted from the secure network.
High-Performance Hardware
Intel 2.6GHz / 6-core CPU, 32GB RAM and a 500GB SSD provide a stable system operating environment.
System Redundancy Support
Supports redundancy for equipment, power, and optical cables to provide a stable system operating environment.
Hardware Details
SSSS Hardware
View the front and rear configurations and key interfaces of the SSSS hardware.

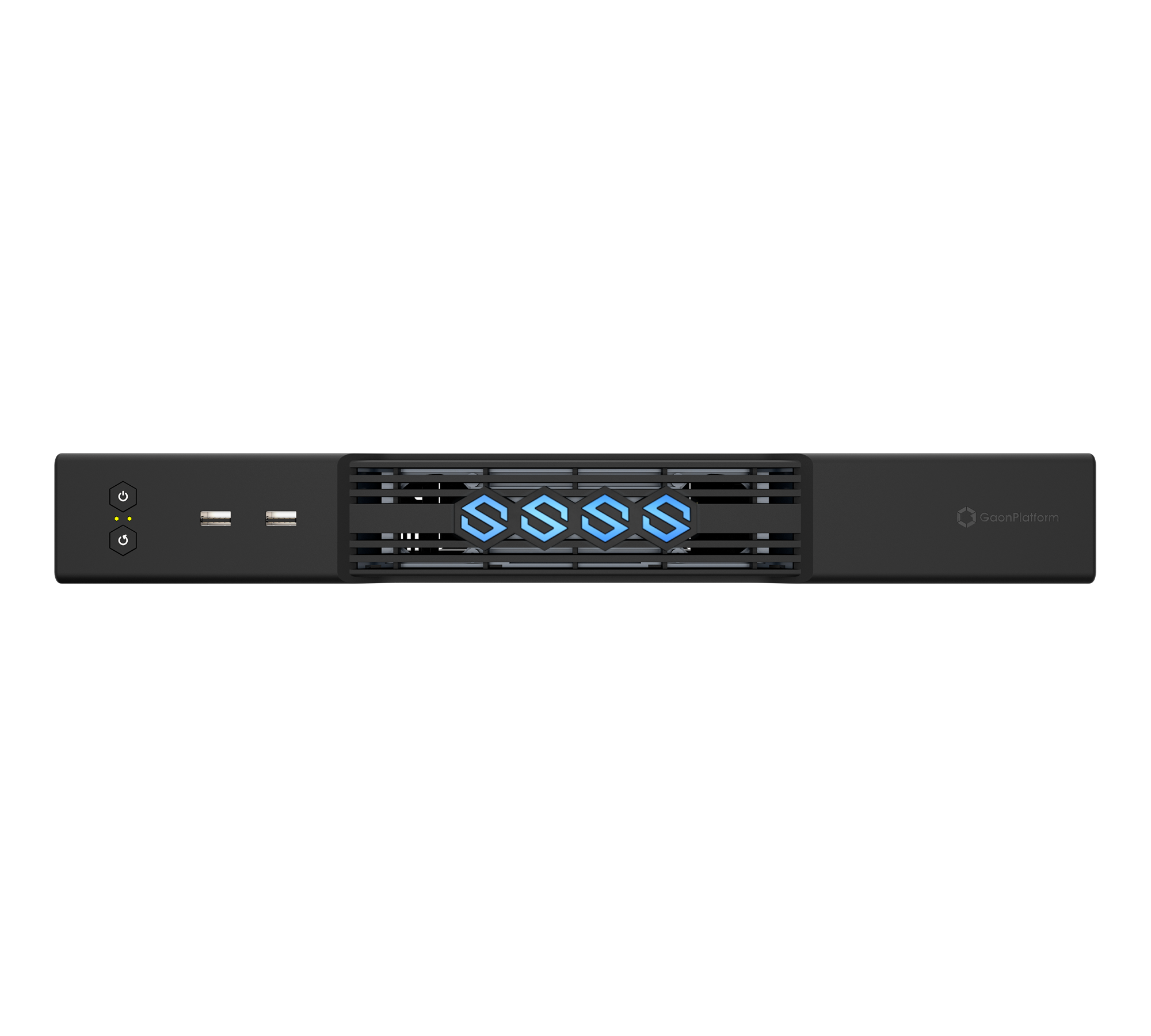

FRONT
REAR
Hardware
Specifications
Detailed SSSS hardware specifications
CPU
Intel 2.6GHz / 6-core
RAM
32GB
STORAGE
SSD 500GB
POWER
250W Redundant Power
INTERFACE
2 × 1Gbps Simplex Optical LC Port
(TX only or RX only)
OS
Windows 10 IoT Enterprise LTSC
FRONT I/O PORT
2 × USB 2.0
REAR I/O PORT
2 × 220V AC IN,
1 × PS/2 Mouse / Keyboard,
1 × DisplayPort 1.4,
1 × HDMI 1.4,
2 × USB 2.0,
1 × USB 3.2 Gen1 Type-A,
1 × USB 3.2 Gen1 Type-C,
4 × USB 3.2 Gen2 Type-A,
2 × RJ-45 Gigabit LAN,
2 × 1Gbps Simplex Optical LC Port (TX only or RX only),
HD Audio Jacks
Hardware
Design Drawing
